NeuroField Products

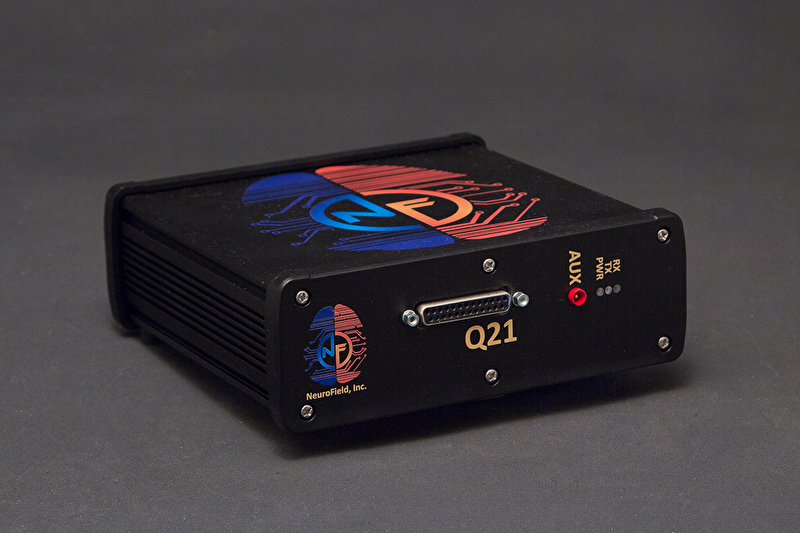

NeuroField Q21 EEG

The Q21 is a state of the art signal processing EEG amplifier. Designed from the ground up for ease of use and flexibility.



The Q21 is a 19 channel EEG amplifier with a low noise floor of 0.25 μV peak to peak from 0.1 to 10.0Hz, meaning that you can record brain wave data without worrying about noise contamination. On top of our low-noise design, the Q21 is a non-multiplexed, multi-channel readout amp, minimizing slew for the most accurate whole brain imaging, and giving you the exact readout of your EEG recordings, with no loss of data or smoothing.



The Q21 is driven by NeuroField Acquisition software.  You can downlead this software HERE



The Q21 is FDA 510K cleared as an EEG device.



MSRP $6995.00



PURCHASE



Please call For more information regarding this device



img-Q21_copy





+ Specifications

Channels

19+1 (Non-Multiplexed)

References

A1/A2 (ears)

Ground

Channel 20

Input Range

+/-100mV, +/-5 VDC

Input Noise

0.25 μV P - P, 0.1-10.0Hz

Gain

50

Common Mode Rejection Ratio

>120dB from 0-60Hz

Single Pole Low Pass Filter

~80Hz

Resolution

24 bits

Sample Rate/Data Rate

256 Samples/sec

Full Scale Input Range

+/-2.25 V

EEG Resolution

0.02 μVolts/LSB

EEG Channel Bandwidth

Software Controllable

DC Offset Measurement

Average DC Level

Sensor Contact Quality

Monitored Via Offset Voltage

PC Connection

USB - CAN Optically Isolated

Software Compatibility

NeuroField64 & Neuroguide

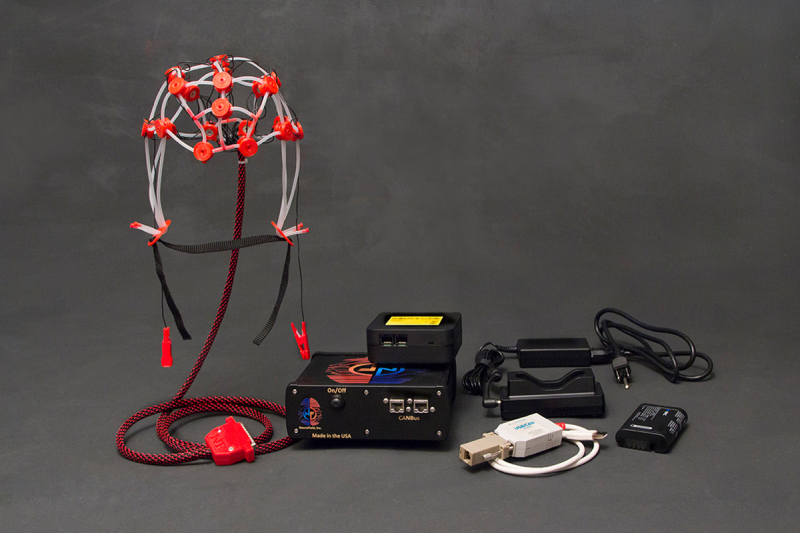

+ Q21 Package Details

The Q21 kit includes everything you would need to connect the Q21 EEG amplifier to your computer. The Q21 is a EEG amplifier and is to be used solely for EEG Acquisition.



Package Contents:

  • Q21 EEG Unit

  • One RRC2040 Battery Pack

  • One Battery Pack Charger (100-240VAC)

  • Access to NeuroField EEG Acquisition software.



Requires but does NOT include E1-LEX electrode cap or E5-9S ear drops.



Please Check our Hardware Recommendations page to see if your computer will run our software.







NeuroField Q-Check

The QCheck is a fully software-integrated electrode impedance meter, metering 20 channels on your electro-cap cap in real time. The QCheck makes impedance checking simple and quick. QCheck only functions in the NeuroField EEG Acquisition Software.  Please refer to the NeuroField Acquisition software for directions on how to use this device.  Note:  QCheck intended use is for impedance measurement only.  This device does not treat, diagnose or cure any medical problems or illness.



MSRP $849.00 (without USB CANBus)



PURCHASE



MSRP $1199.00 (with USB CANBus)



PURCHASE





QCheck Completed Unit

QCheck Completed Unit



+ Specifications

Cap Interface

Lexicor

Power Source

9V

PC Connection

USB - CAN

Software Compatibility

 NeuroField64





+ QCheck Package Details

The QCheck kit includes everything you need to add the QCheck to your NeuroField setup. The QCheck is an impedance meter; it does not collect any patient data. Does not include CANBus adapter for stand-alone operation.



Package Contents:

  • QCheck Unit

  • One RJ-45 cable

  • One 9V battery



Please Check our Hardware Recommendations page to see if your computer will run our software.

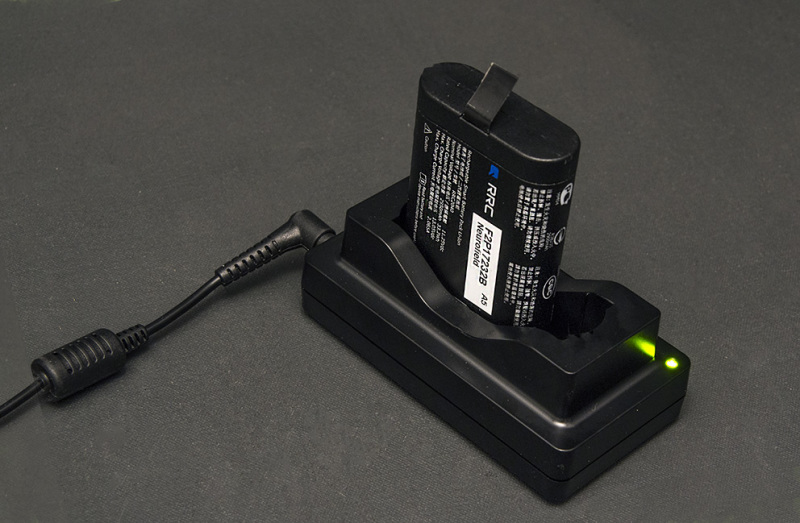

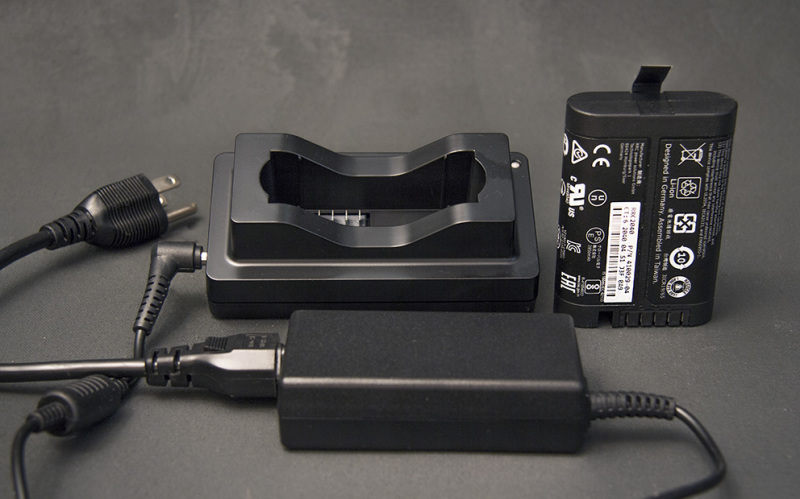

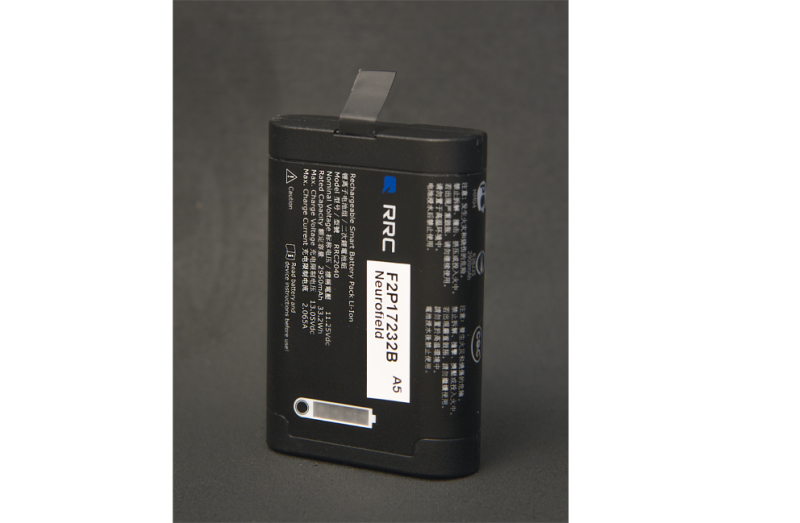

Battery and Charger

The rechargeable battery for powering the Genesis and the Q21.



Need to replace a battery or would like to have a backup? Purchase separately or together.



Battery MSRP $350.00



PURCHASE



Charger MSRP $200.00



PURCHASE



Battery and Charger MSRP $550.00



PURCHASE



Please call For more information regarding this product

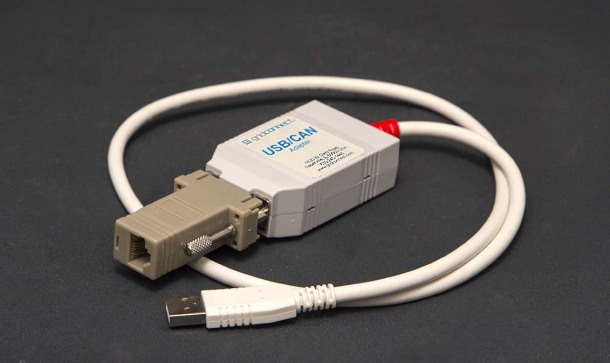

USB CANBus Setup

The adapter  that connects your NeuroField devices to one USB port of your PC or notebook.



MSRP $350.00



PURCHASE



Please call For more information regarding this product
